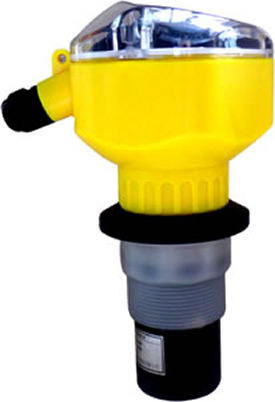

KUM-A ultrasonic water level sensor

Ultrasonic probes can also be customized according to customer need in this series: high pressure and high temperature resistant, light, small diameter, small blind area and other special regulatory probes.

KUM-A ultrasonic water level sensor

Brief introduction of ultrasonic level sensor

This ultrasonic sensor provides very short to long-range detection and ranging, in a compact, robust PVC or stainless steel housing, designed to meet IP67 water intrusion. The power 9.0V-28V operation detects objects from 0.1meters to 10meters and provides sonar range information from 0.25meters out to 10meters out with 0.001meters or 0.01meters resolution. The interface output formats included are pulse width output, analog voltage output, NPN/PNP output and serial digital output.

Features of long range ultrasonic leve sensor

  • High sensitivity
  • Designed for outdoor or indoor environments
  • 9V-28V supply with very low average current draw
  • Sensor operates at 40 KHz, 112 KHz, 175 KHz, 300 KHz, 1 MHz
  • Free run operation can continually measure and output ranger information
  • Multi-kind output type such as analog (40-20mA, 0/1-5V, 0/1-10V), RS485, Can bus.
  • Readings can occur up to every 33mS(30Hz) within 3meters or occur up to every 80ms(12.5Hz) within 10meters.


Function Integrated type Split type
Range 5m、10m、15m、20m、30m、40m、50m、60m 5m、10m、15m、20m、30m、40m、50m、60m、70m、
Accuracy 1% 1%
Resolution 3mm or 0.1%(bigger) 3mm or 0.1%(bigger)
Display Chinese and English LED Chinese and English LED
Analog Output Four-wire 4~20mA/510Ωload

Two-wire 4~20mA/250Ω load

Relay Output


Two groups:

AC 250V/ 8A or DC 30V/ 5A

Status can be programmed

Two groups for single channel

Four groups for double channels

AC 250V/ 8A or DC 30V/ 5A

Status can be programmed

Power supply Standard:24VDC

Optional: 220V AC+15%  50Hz

Standard:220V AC+15%  50Hz

Optional:24VDC or 120mA

Customize:12VDC or battery



LED : -20~+60℃,

Probe : 20~+80℃

LED : -20~+60℃,

Probe : 20~+80℃

Communication Option:485,232 Communication

(manufactures agreement)

Option:485,232 Communication

(manufactures agreement)

Protection Grade LED: IP65,

Probe: IP68

LED: IP65,

Probe: IP68

Cable Probe No standars:10m  longest:100m
Probe installation According to the range and the probe type According to the range and the probe type


1. Q: Whan information need to be provided to choose the suitable ultrasonic leve lsensor?

A: Please provide us application field, outputmeasuring rangemedium ( liquid type )temperatureinstallation method. Based on these infoemations, we can choose model and quote for you quickly.

2. Q: How can we guarantee quality?

A: Always a per-production sample before mass production;

Always final inspection before shipment.

3 Q: Are you a trade company or a manufacturer?

A: We are an ISO9001 approved manufacturer specialized in level and folw measuring instruments.

0EM & ODM service are available. Welcome to visit us.

4. Q: Do you have a warranty?

A: Yes, we have the warranty of 12 months.

5. Q: What is your payment terms?

A: We support T/T, PayPal and Trade Assurance.

For mass production order, it is 30% deposit in advance and 70% balance before shipment.

6.Q: What is Trade Assutance payment method?

A: It’s free service which can protect your orders from payment to delivery.

And we now have USD104.000.00 of caution money to assure your orders.

7. Q: What is your delivery data?

A: The delivery data is about 3-15 working days after receipt of payment.

8. Q: What is your MOQ?

A: To start our cooperation, sample order is acceptable.
