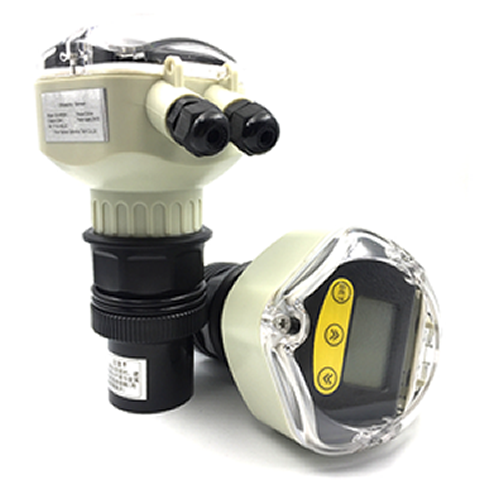

KUM-C Digital Intellient High Accuracy Ultrasonic Level Meter Non-Contact Level Sensor

Ultrasonic probes can also be customized according to customer need in this series: high pressure and high temperature resistant, light, small diameter, small blind area and other special regulatory probes.

KUM-C Digital Intellient High Accuracy Ultrasonic Level Meter Non-Contact Level Sensor

KUM-C ultrasonic level meter is a non-contact and cost-effective level meter with high reliability, high accuracy and easy installation. It does not have to contact the medium and can meet the measuring requirements of most applications.

1. Technical Features:

  • Non-contact, can be used in various applications;
  • High accuracy: 0.5%, 1%
  • Various types of probes are available to meet the requirements of various applications.

2. Structure:

3. Technical Specifications:

Specs Value
Pressure Voltage 5m, 10m
Accuracy 0.5%, 1.0%
Display LCD
Ambient Temperature Display instrument-20~+60℃
Medium liquid and solid
Analog Output 4-20mA
Digital Output RS485, RS232 (both are optional)
Power Supply 24Vdc
Protection Grade Display instrument IP65,transducer IP68
Probe Type PVDF, aluminum alloy, ABS, stainless steel 316L, teflon, titanium alloy

4. Model Selection:

Measurement Range
A 5 meter
B 10 meter
Output Signal
A 4-20mA
0.5 0.5%
1.0 1%
Power Supply
A 24Vdc
B 11~30Vdc
Probe Type
B Aluminum alloy
D Stainless steel 316L
E Teflon
F Titanium alloy

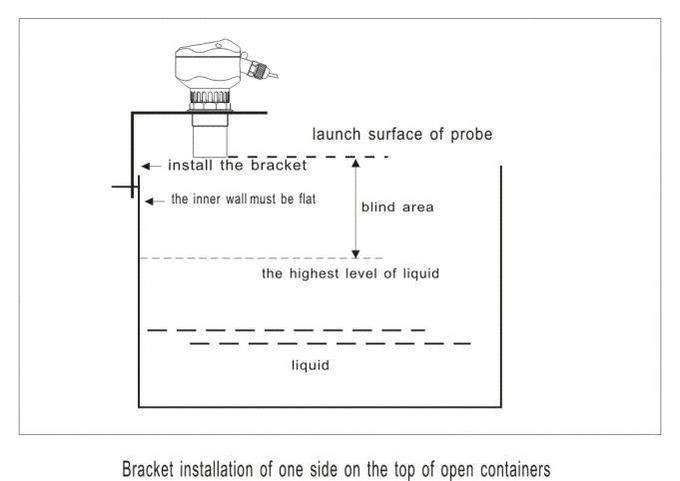

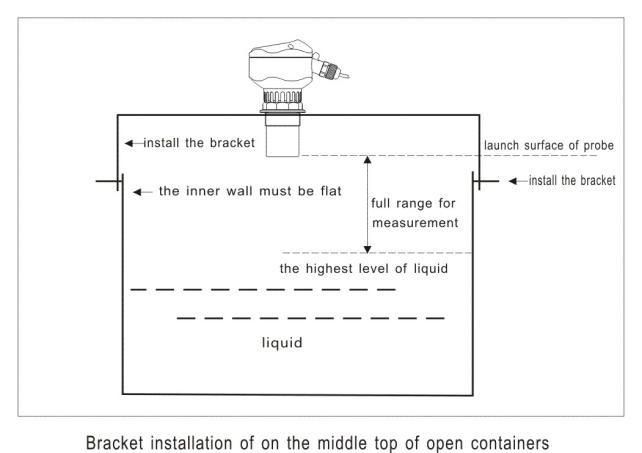

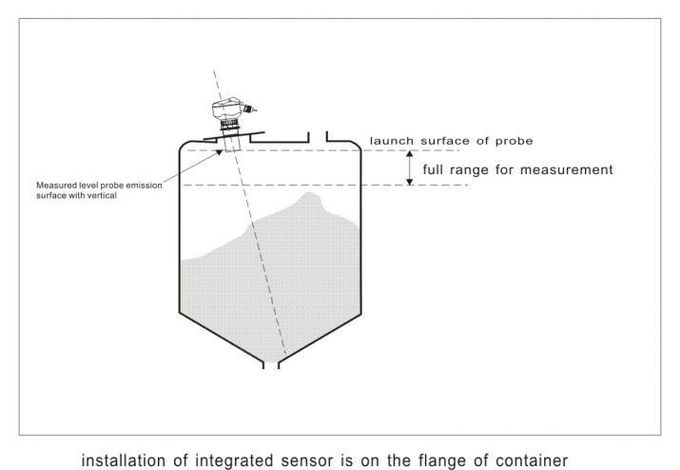

5. Applications and Installations:

  • Distance measurement
  • Depth measurement



1. Q: What information need to be provided to choose the suitable ultrasonic leve lsensor?

A: Please provide us application field, outputmeasuring rangemedium ( liquid type )temperatureinstallation method. Based on these infoemations, we can choose model and quote for you quickly.

2. Q: How can we guarantee quality?

A: Always a per-production sample before mass production;

Always final inspection before shipment.

3 Q: Are you a trade company or a manufacturer?

A: We are an ISO9001 approved manufacturer specialized in level and folw measuring instruments.

0EM & ODM service are available. Welcome to visit us.

4. Q: Do you have a warranty?

A: Yes, we have the warranty of 12 months.

5. Q: What is your payment terms?

A: We support T/T, PayPal and Trade Assurance.

For mass production order, it is 30% deposit in advance and 70% balance before shipment.

6.Q: What is Trade Assutance payment method?

A: It’s free service which can protect your orders from payment to delivery.

And we now have USD104.000.00 of caution money to assure your orders.

7. Q: What is your delivery data?

A: The delivery data is about 3-15 working days after receipt of payment.

8. Q: What is your MOQ?

A: To start our cooperation, sample order is acceptable.
