KUM-B Digital Split Intelligent Enhanced Ultrasonic Level Meter Non-Contact Level Sensor
KUM-B ultrasonic level meter is a non-contact and cost-effective level meter with high reliability, high accuracy and easy installation. It does not have to contact the medium and can meet the measuring requirements of most applications.
1. Technical Features:
- Non-contact, can be used in various applications;
- High accuracy: 0.5%, 1%
- Various types of probes are available to meet the requirements of various applications.

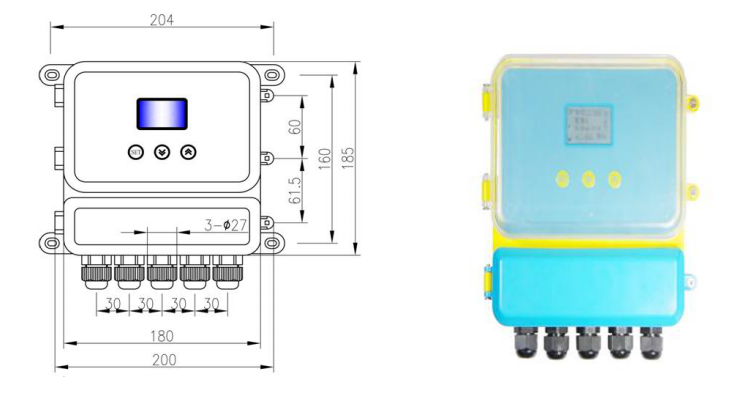

2. Structure:
3. Technical Specifications:
| Specs | Value |
| Pressure Voltage | 5m, 10m, 15m, 20m, 30m, 40m, 50m, 60m |
| Accuracy | 0.5%, 1.0% |
| Display | LCD |
| Ambient Temperature | Display instrument-20～+60℃ transducer-20～+80℃ |
| Medium | liquid and solid |
| Analog Output | 4-20mA |
| Digital Output | RS485, RS232 (both are optional) |
| Power Supply | 24Vdc |
| Protection Grade | Display instrument IP65,transducer IP68 |
| Probe Type | PVDF, aluminum alloy, ABS, stainless steel 316L, teflon, titanium alloy |
4. Model Selection:
| KUM-B | ||||||
| Measurement Range | ||||||
| A | 5m | |||||
| B | 10m | |||||
| C | 15m | |||||
| D | 20m | |||||
| E | 30m | |||||
| F | 40m | |||||
| G | 50m | |||||
| H | 60m | |||||
| Output Signal | ||||||
| A | 4-20mA | |||||
| Accuracy | ||||||
| 0.5 | 0.5% | |||||
| 1.0 | 1% | |||||
| Power Supply | ||||||
| A | 24Vdc | |||||
| B | 11~30Vdc | |||||
| Probe Type | ||||||
| A | PVDF | |||||
| B | Aluminum alloy | |||||
| C | ABS | |||||
| D | Stainless steel 316L | |||||
| E | Teflon | |||||
| F | Titanium alloy | |||||
5. Applications and Installations:
- Distance measurement
- Depth measurement
